PoE Fiber Media Converter ADnet Ethernet 20km

Description

Product Overview

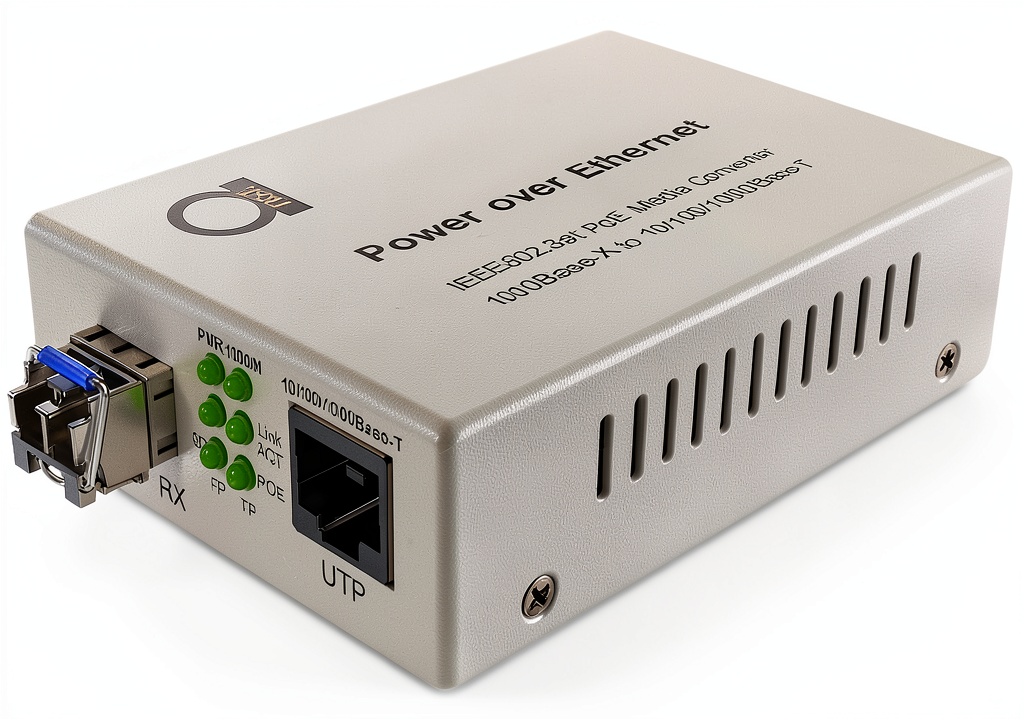

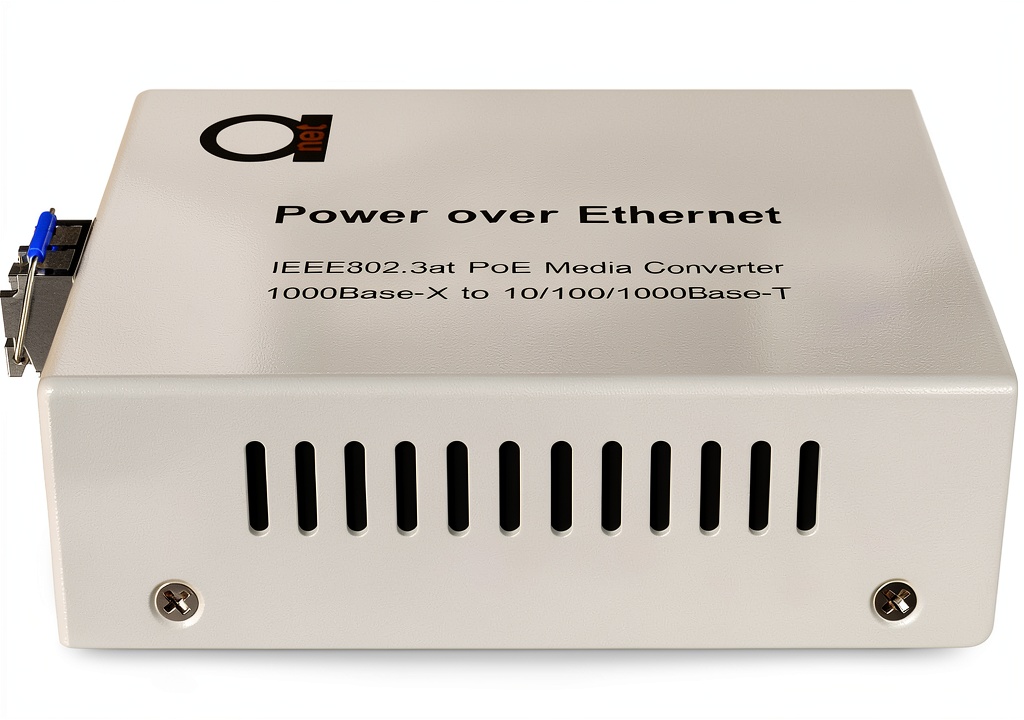

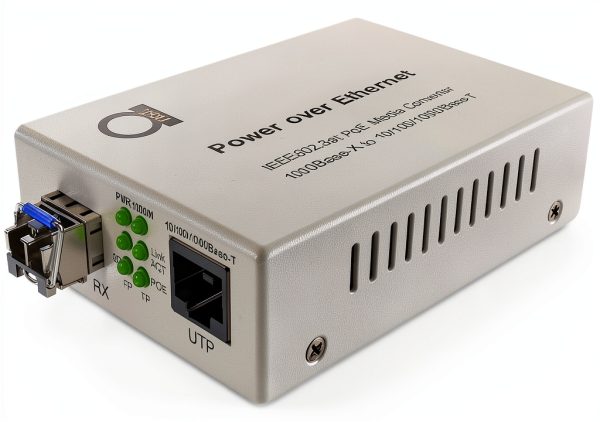

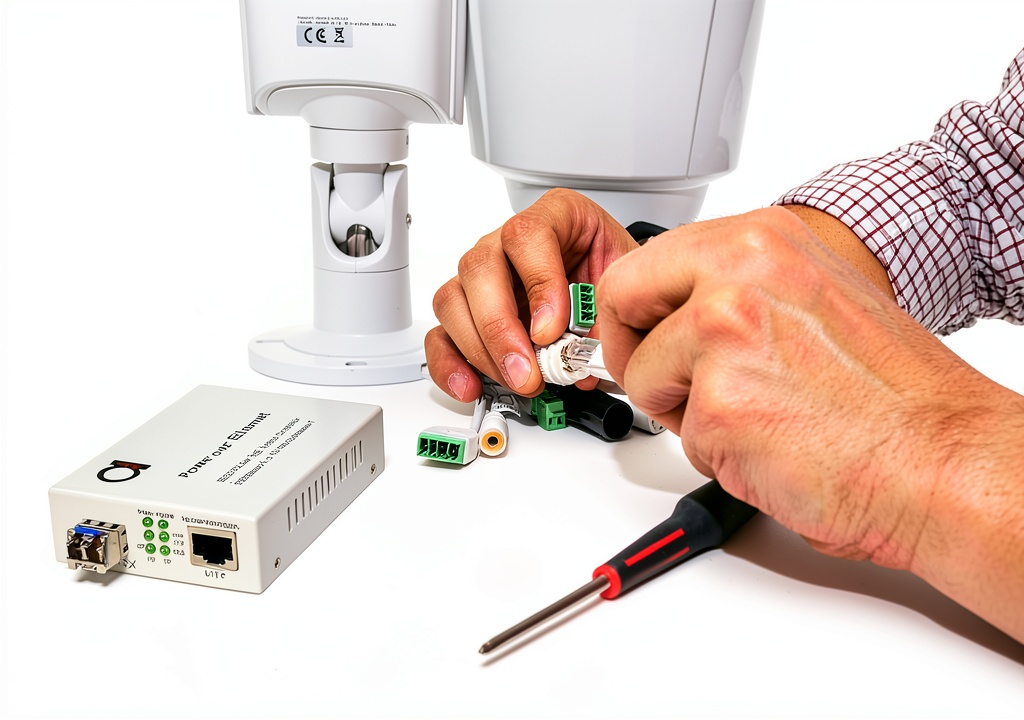

The ADnet PoE LC Media Converter is engineered to bridge the gap between high‑power PoE devices and long‑distance fiber networks. Housed in a rugged ABS enclosure measuring 9.88 x 8.62 x 3.15 inches and weighing just 1.65 pounds, the unit is designed for industrial environments where durability and reliability are paramount. It supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, delivering up to 30 W of power to powered devices such as IP cameras, VoIP phones, and wireless access points.

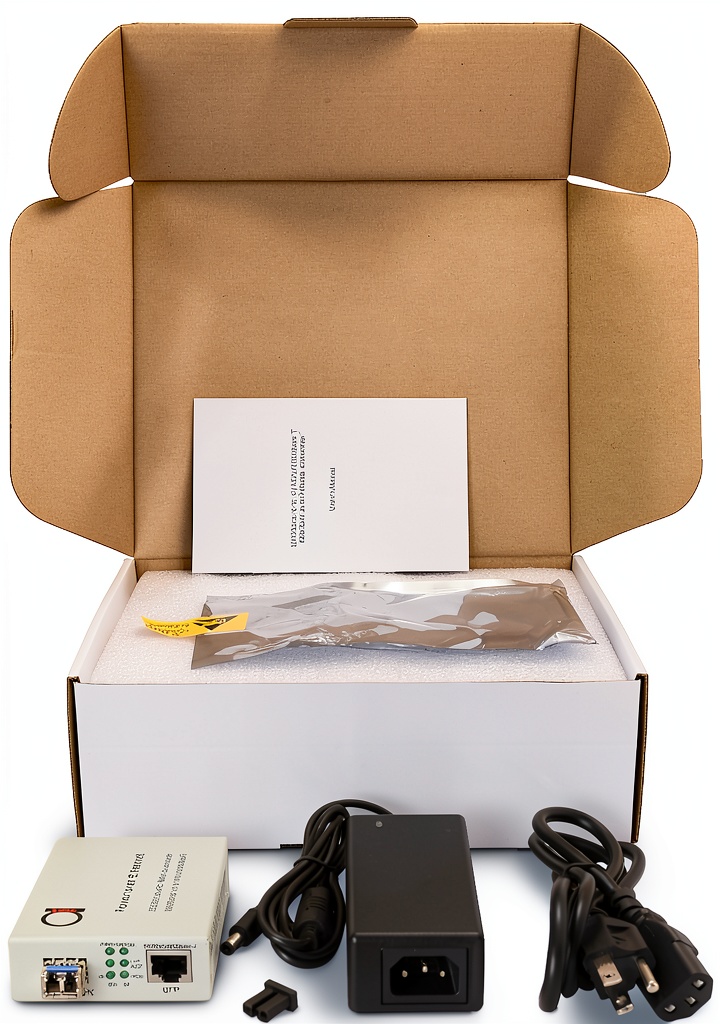

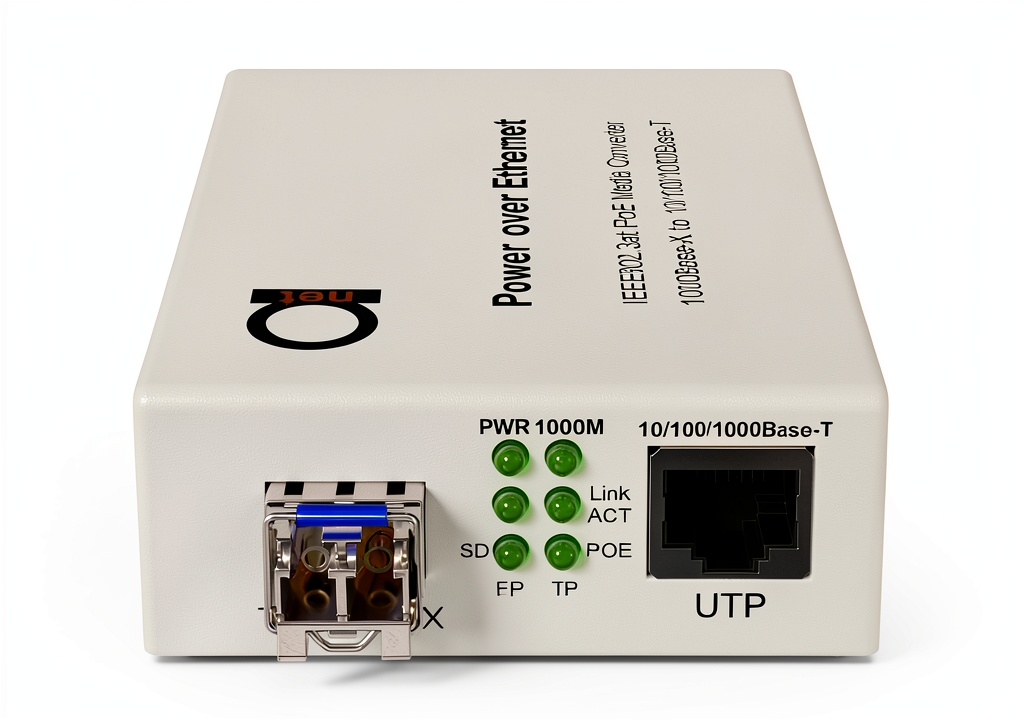

Optical performance is driven by a dual‑fiber LC connector pair that operates at 1310 nm on single‑mode fiber, allowing Ethernet signals to travel up to 20 km (12.42 miles) without degradation. The converter automatically detects 10/100/1000BASE‑T Ethernet on the copper side and provides autosensing capabilities, ensuring optimal link speed and stability. Power input ranges from 47 V to 57 V DC, and a dedicated power supply is included for plug‑and‑play deployment.

Additional technical features include Link Loss Propagation (LFP) support, jumbo frame handling, and a dip‑switch on the rear panel that can force the copper port to 10 Mbps for legacy equipment. The device has earned a solid 4.3‑star rating from customers and ranks #10 in the Fiber Optic Transceivers sub‑category, reflecting its strong market acceptance.

Usage

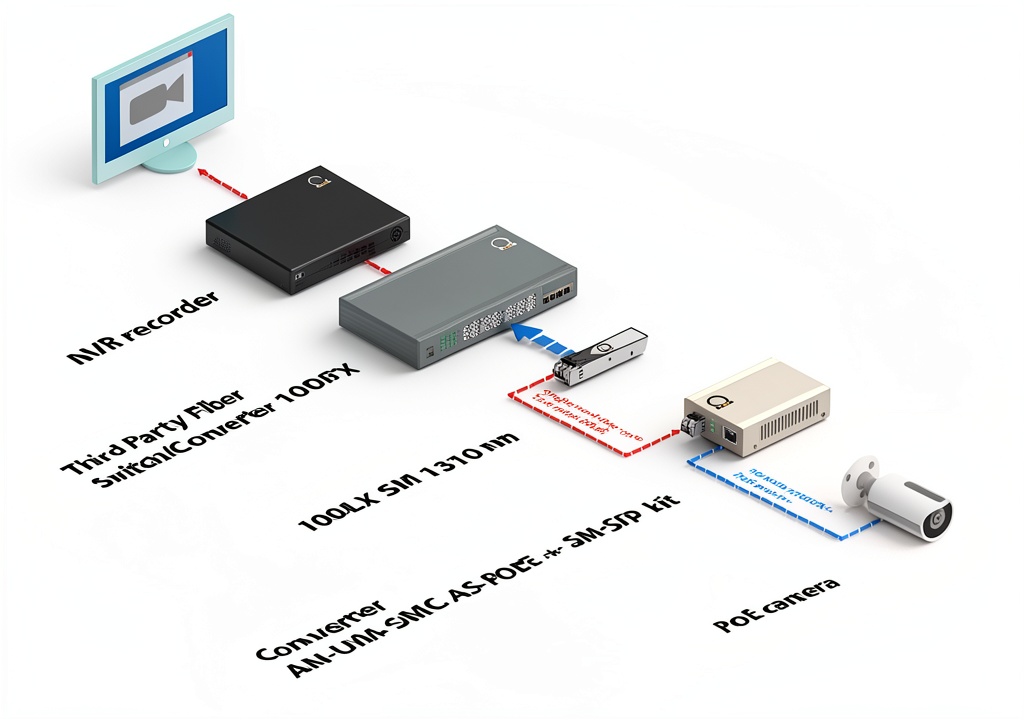

Designed for a wide range of industrial and commercial applications, this media converter excels in scenarios where power and data must travel long distances over a single‑mode fiber backbone. Typical use cases include campus-wide surveillance systems, where PoE‑enabled cameras are positioned far from the central NVR, and large‑scale VoIP deployments that require reliable power delivery to remote handsets.

In manufacturing plants, the converter can link control panels and PLCs to a central SCADA system while simultaneously powering sensors and actuators. Its compact size and mounting options make it suitable for rack‑mount installations, wall‑mounted panels, or outdoor enclosures when paired with appropriate weather‑proofing.

Network engineers appreciate the ease of integration: the copper port accepts standard RJ45 cables, and the fiber side connects to existing single‑mode infrastructure without the need for additional media converters. This reduces cable clutter, lowers latency, and simplifies troubleshooting. The device’s ability to handle jumbo frames and LFP ensures smooth operation even in high‑traffic environments.

Why Choose Us

ADnet’s reputation for quality is reflected in the meticulous design of this PoE media converter. Every component, from the LC fiber connectors to the power supply, is sourced from reputable manufacturers and undergoes rigorous testing to meet IEC and FCC standards. The unit’s firmware is locked to prevent unauthorized modifications, guaranteeing long‑term stability and security.

Our after‑sales support includes a 12‑month warranty, responsive technical assistance, and access to firmware updates that keep the device compatible with evolving network standards. Customers benefit from comprehensive documentation, including installation guides, wiring diagrams, and troubleshooting FAQs, all aimed at minimizing downtime.

Environmental resilience is another key advantage. The converter operates within a temperature range of 0 °C to 50 °C and is rated for humidity up to 95 % non‑condensing, making it suitable for harsh factory floors, outdoor telecom sites, and remote monitoring stations.

Key Features

• Delivers up to 30W PoE+ power, eliminating the need for separate power adapters.
• Extends Ethernet connectivity up to 20 km over 1310 nm single‑mode fiber, ideal for large‑scale deployments.
• 10/100/1000 autosensing copper port ensures optimal link speed without manual configuration.
• Supports LFP and jumbo Ethernet frames for reliable performance in high‑traffic networks.
• Backed by ADnet’s dedicated customer support and a 12‑month warranty for peace of mind.

FAQ

What types of devices can be powered by this converter?

The unit complies with IEEE 802.3af and 802.3at standards, so it can power IP cameras, VoIP phones, wireless access points, and other PoE‑compatible equipment up to 30 W per port.

Can the converter be used with existing fiber infrastructure?

Yes. It features standard LC connectors for single‑mode fiber and works with any 1310 nm fiber optic cable already deployed in your network.

Is there a way to force the copper port to a specific speed?

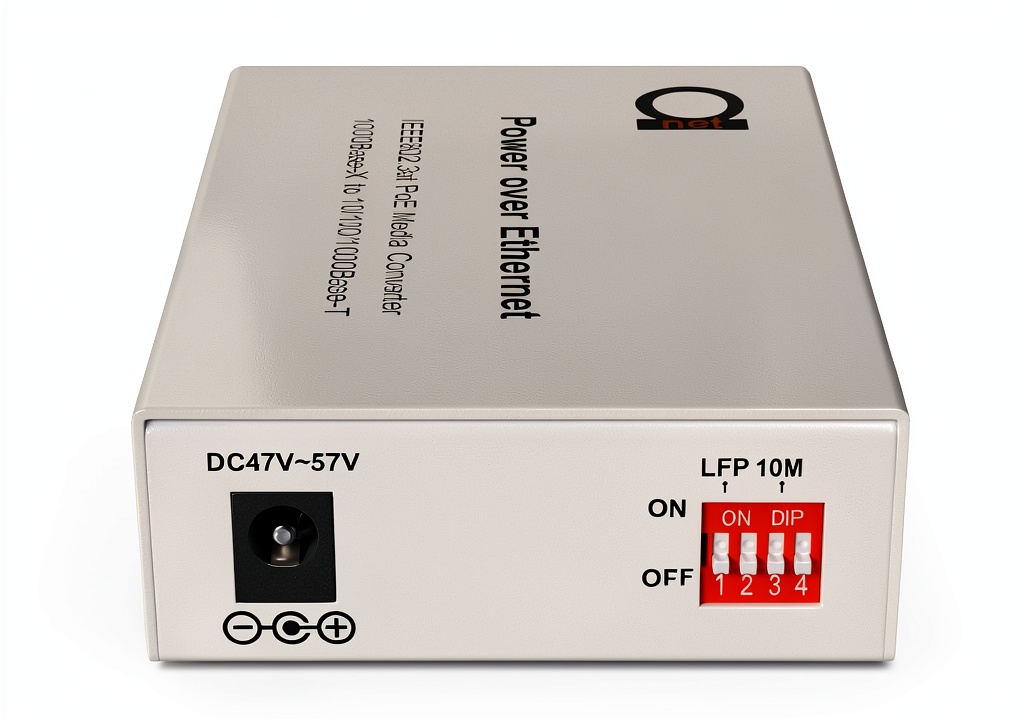

Yes. A dip‑switch on the rear panel allows you to lock the RJ45 port to 10 Mbps if you need to support legacy devices that cannot negotiate higher speeds.

What warranty and support does ADnet provide?

All units come with a 12‑month limited warranty, and our technical support team is available to assist with installation, configuration, and troubleshooting.

Does the converter support jumbo frames?

By default, the device is configured to handle jumbo Ethernet frames, which helps maintain performance in networks with large payloads.
